| Allied Glass Industries offers a multitude of glass and
glass related services. Our goal is to be able to satisfy
all our clients' needs in a cost effective timely manner
while offering the best possible products available in the
glass arena. Below are some of our more popular services,
should you have a need not listed below please don't
hesitate to email
info@alliedglass.com or call 570-586-7417, chances are
we can help. We meet
or exceed the ANSI 297.1-1984 and CPSC 16 CFR 1201, Category
II requirements.

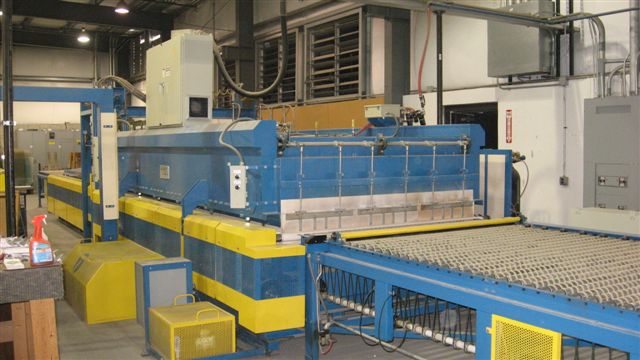

Tempering/Heat-Strengthening
- We offer the most up-to-date
tempering/heat-strengthening process available. Tempered
glass is great in homes, businesses, boats and
automobiles.
- We can either temper or
heat-strengthen your glass from 3/16 3/4"
- We can temper as big as 60 x 120 or
as small as 4 x 8
- When tempering, we create an initial
condition of surface and edge compression. This is
achieved by heating the glass and then rapidly cooling
the surfaces. This leaves the center hot and as it cools
it forces the surfaces and edges into compression.
- This glass will be four times
stronger than annealed glass and will be able to
withstand a wide range of temperature changes. When
tempered glass breaks, it fractures into small,
relatively harmless pieces. This is called dicing
which reduces the dangers of injury.
- Heat-strengthened glass has a surface
compression between 3,50010,000 psi or an edge
compression between 5,5009,700 psi. The fracture
characteristics vary according to the psi surface and
edge compression. The lower the psi, the more like
annealed glass; the higher the psi, the more like
tempered glass.
Beveling
- We use diamond grinding wheels to
remove a portion of the glass edge. Then, we use felt
wheels and a polishing compound to bring the edge to a
shiny, clear finish.
- We provide straight-line and pattern
beveling on glass from 1/8 to Ύ thick.
- Our standard bevel sizes for
straight-line beveling are Ό to 1½.
Edgework
- Clean Cut - rough and sharp
- Seamed - a rough grind is
applied to the top and bottom to take off the sharpness
- Ground - all edges are ground
but not polished and have a satin-finished look
- Flat Polish - the side edge is
flat with a small seam or aris on the top and bottom
edge of the glass
- Pencil Polish - side edge is
rounded which gives it a soft look
- OGEE Edge - defined as an S
profile
- Mitered Edge - the edge of the
glass is removed until it is only a fraction of its
original thickness

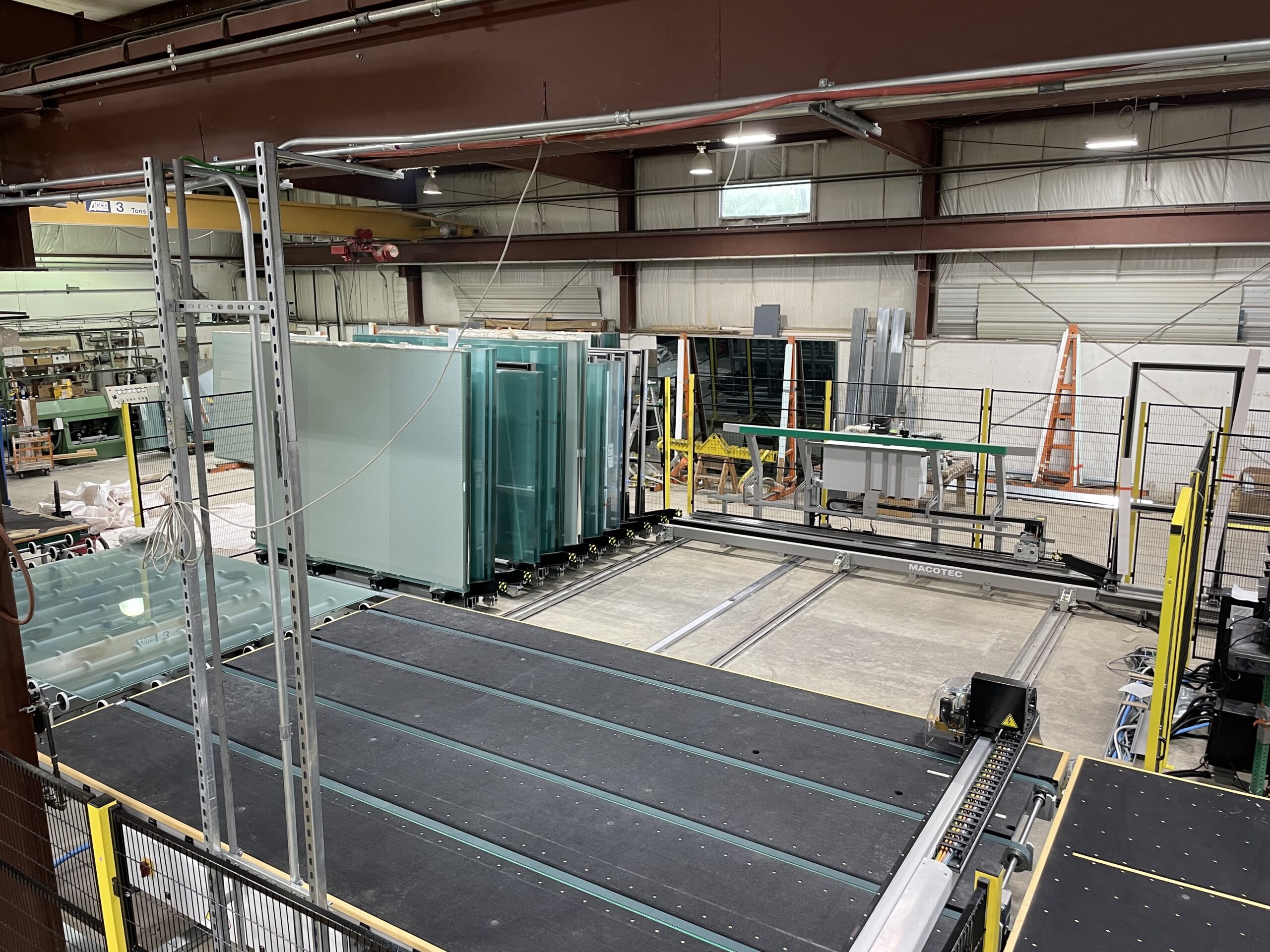

Glass/Mirror Cutting
- We have the most up-to-date
glass-cutting machine to provide you with precision-cut
glass pieces.

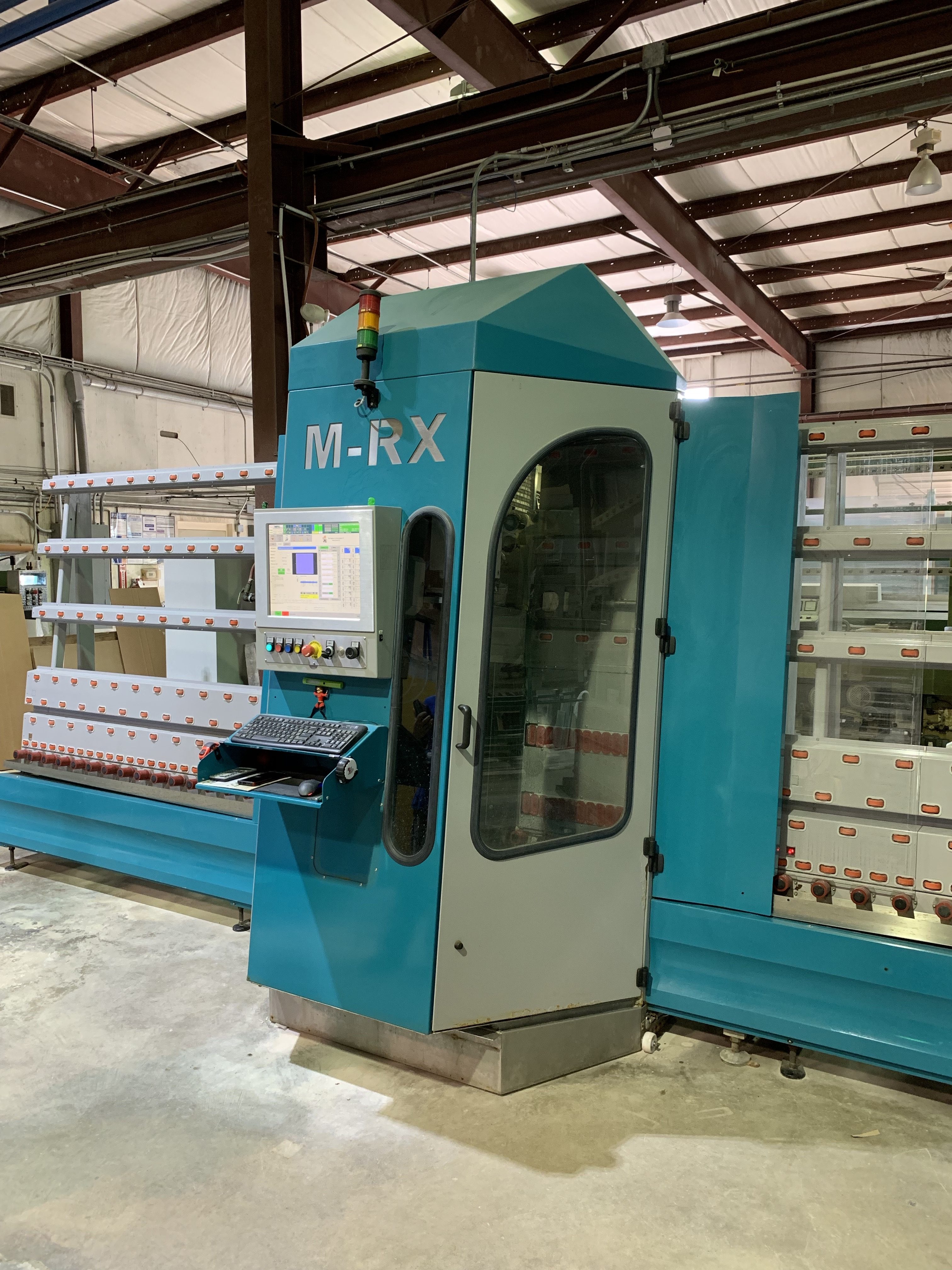

- Hole-drilling
- Notches and cut-outs for light
switches
- Finger pulls: handle grooves in
sliding glass doors

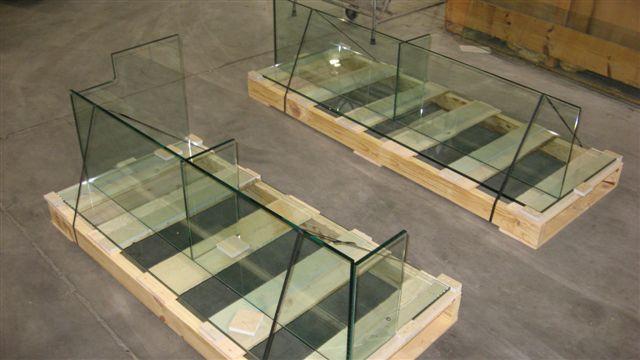

- Bonded boxes
- Pattern cutting: diameters, ovals,
race-track ovals, quarter rounds, various shapes
Sandblasting
- Sandblasting glass gives it a frosted
appearance.
- We can frost your glass to add some
privacy to your bathroom shower or to improve the
appearance of your home.
- Our sandblasting process can be done
to cover an entire side of glass or just to add some
stripes to a piece of glass.
|
